PAYLOADS
The Edge 130 incorporates weather-tight FlightWave twist-lock connector. Payloads can easily be swapped in seconds without any tools, just like changing a lens on a 35mm camera.
PAYLOADS

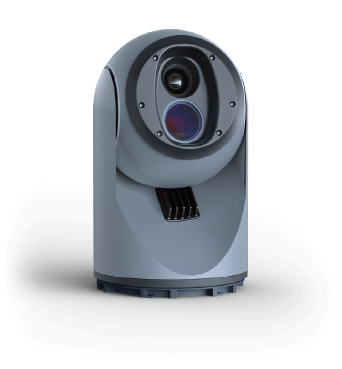

Overwatch Gimbal
The Overwatch EOIR Gimbal offers electro-optical infrared (EOIR) capabilities on a 3 axis gimbal-stabilized platform. Two cameras collect video in color and infrared, each writing full resolution to an on-board SD-card while streaming live compressed video to the ground station for real-time insight. The FlightWave Glo-12K Electronic Global Shutter color camera records detailed 4k-30fps video that can be digitally zoomed 10x. Thermal video is recorded with a long-wave infrared imager that record at 640×512 with 2x digital zoom, allowing you to gather valuable insight at a distance.

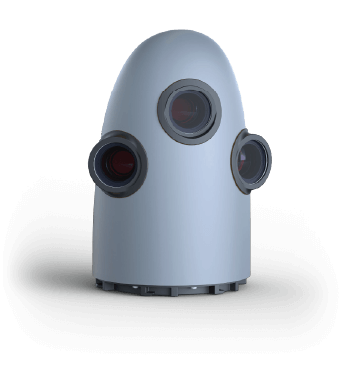

Mapping Array
Our Mapping Array features three simultaneously triggered 13MP CMOS cameras, which together collect 39MP of image data at up to 5 frames per second. These images are saved to an innovative onboard removable storage card that can write up to 1TB of data at over 1400MB per second. The cameras are configured to most optimally sample a 100 meter wide image at 1cm per pixel, when flying 100 meters above the ground. When flying at Edge’s nominal cruise speed of 15m/s with industry-standard overlap setting, this means you will be able to cover over 1600acres of land in one flight of 90 minutes.
SPECIFICATIONS
-
AIRCRAFT -
Weight: 2.65 lbs (1,200 g)
-
Size: 51 in (130 cm) x 30 in (77 cm)
-
Cruise Endurance: *60+ minutes
-
Nominal Cruise Speed: 15 m/s (33 mph)
-
Range: 12.4 miles (20 km)
-
Battery Nominal Capacity: 86.4 wh, 6.0 ah, 14.8 v
-
RFID: Optional
-
PAYLOADS -
ISR and Mapping
-
Battery Nominal Capacity: 86.4 wh, 6.0 ah, 14.8 v
-
OVERWATCH PAYLOAD -
EO Video Recording: 4K at 30 fps, 10x zoom
-
IR Video Recording: 640x512, 2x zoom
-
Digital Data Range: 5 mi (8 km) using directional antenna
-
MAPPING PAYLOAD -
3 simultaneously triggered 13 MP CMOS cameras
-
39 MP of image data at up to 5 fps
*standard atmospheric pressure
